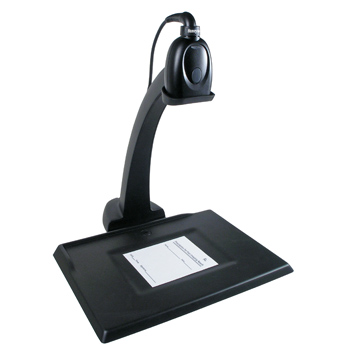

Powered by Adaptus Imaging Technology 5.0, the 4800dr takes crisp images of documents up to 8.5” x 11” or A4 format in size and any paper or text color. It comes with a bunch of simple to use image enhancement tools to sharpen text, improve contrast, and to orientate and enlarge (magnify) the image. Moreso, a built-in auto-cropping and file configuration options and compression function ensure the best picture quality and file size for your application needs. The 4800dr includes flexibility to scan bar codes and can read all linear, stacked and 2d barcodes.

The 4800dr’s integrated stand form factor and document tray platform ensures easy setup and operation without the need for constant adjustments or calibration. There’s no need to reposition the scanner, regardless of document size. Just put the document in the tray and capture the image.

A wide array of connectivity options including TWAIN, SANE and USB let you connect the 4800dr directly to your host system without needing costly modifications or adapters.

Featuring 100% solid-state technology, there are no moving parts that can fail or need regular maintenance – giving you years of uninterrupted, hassle-free operation. Combined with a full 3-year comprehensive warranty, the 4800dr gives unrivaled reliability and a low total cost of ownership.

Features

·         Purpose-Built for Document Imaging: Imager, stand and document tray work together as an all-in-one document imaging suite and gets rid of need to adjust for different document sizes

·         Versatile Document Imaging Performance: Adaptus Imaging Technology 5.0 lets you image pages up to 8.5” x 11” or A4 size and specialized white illumination ensures crisp images regardless of document or font color

·         Durable and Reliable Technology: 100% solid-state with no moving parts, with a 3-year inclusive warranty

·         Multi-connection Options: Supports TWAIN, SANE, and USB drivers, each with the imaging SDK library on-board.

·         Barcode Scanning Enabled: Provides versatility of scanning linear, stacked and 2D bar codes, eliminating need for buying a stand-alone scanner

·         Integrated Image Enhancement & Processing Tools: Simple to use pre-loaded tools for increasing the quality and usability of captured images including sharpening, contrast improvements and digital zoom. Many automatic and choose able file compression options make sure the file size and image quality result meets your application requirements

----------------------------------------------------------------------------

 4800dr Technical Specifications

·         Operational

·          Light Source Illumination: Visible Red LED 652 nm ± 7.5 nm; Visible White LED 440 nm and 530 nm

·          Visual Indicators Green = good scan or image

·          Host System Interfaces USB, TTL Level RS232

·          Imaging Drivers TWAIN, SANE, USB Serial Port Emulation

·         Mechanical

·          Dimensions (LxWxH) 340 mm x 358 mm x 386 mm (13.4? x 14.1? x 15.2?)

·          Weight 2.0 kg (4.4 lb)

·         Electrial

·          Input Voltage 4.0 to 5.5 VDC

·          Operating Power 1.9 W (370 mA @ 5 V)

·          Standby Power 250 mW (50 mA @ 5 V)

·          DC Transformers Class 2: 5 VDC @ 2.4 A

·          LED Class Class 1: IEC60825-1, EN60825-1

·          EMC FCC Part 15, ICES-003, EN55022 Class A

·         Environmental

·          Operating Temperature 0°C to 50°C (32°F to 122°F)

·          Storage Temperature -20°C to 60°C (-4°F to 140°F)

·          Humidity 5% to 95% at 50°C non-condensing

·          Drop Designed to withstand 1.5 m (5´) drops (document imager only)

·          Environmental Sealing IP41

·          Light Levels 100,000 Lux (9,290 foot-candles)

·         Performance

·          Scan Pattern Area Image (1280 x 960 pixel array)

·          Motion Tolerance 7.5 cm/s (3 in/s) with 13 mil UPC at optimal focus

·          Print Contrast 20% minimum reflectance difference

·          Pitch, Skew 45°, 45°

·          Image Resolution Standard: 100 ppi

·          Image Speed 20 ppm minimum - 8.5" x 11.0" (A4) with image processing via TWAIN / SANE / SDKs

·          Image Format JPEG: Compression scaled from 0 to 100; BMP: Grayscale; TIFF: Binary, Binary Compressed (Group 4), Grayscale

·          Decode Capability Reads standard 1D, PDF, 2D, Postal and OCR symbologies. Visit www.honeywell.com/aidc/symbologies for details.

·          *Note: Decoding capabilities dependent on kit configuration

·         Warranty 3 year factory warranty
